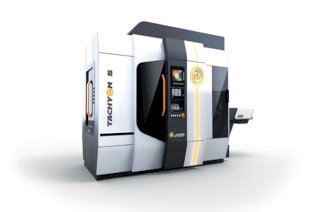

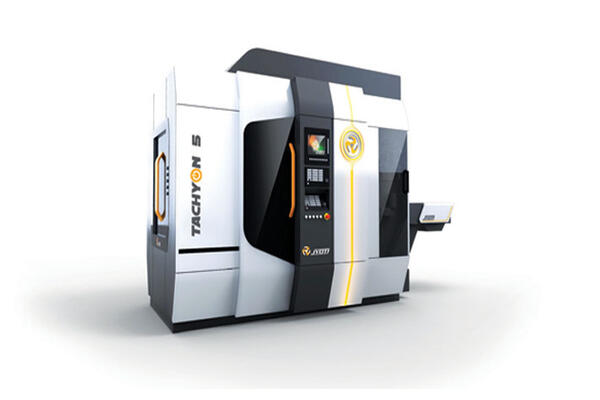

Jyoti Develops High Speed Drill-tap Centers - The Tachyon Series

The moving column centers are ideally fit for small and mid-sized components for continuous drilling-tapping operations.

Designed for faster drill-tap operations to cater the most sophisticated applications of automobile, surgical and telecommunication industries, Jyoti has developed high speed drill-tap center called the Tachyon Series. The series is equipped with fast electro-mechanical type integral pallet changer, fast tool changer and dynamic rapid of 60 m/min for axis. These moving column drill-tap centers are ideally fit for small and mid-sized components for continuous drilling-tapping operations with greater productivity offering.

The key features of this series include optimized construction to support 60 m/min rapid rates, high acceleration up to 15 m/sec2, roller type high precision linear motion guideways, directly coupled high speed BT-30 spindle, integral work-piece changer (APC) with a changing time of 4 sec, 16 tool drum type ATC with tool changing time of 1 sec, and 90° tilting operating panel to view the machining area.

---

---
