THE RIGHT FILTER FOR EVERY GRINDING APPLICATION

KNOLL Maschinenbau, a leading provider of conveyor systems, filtration systems, and pumps for metal processing, has introduced its two filter solutions: HydroPur and MicroPur® that can address the issue of cooling lubricants and grinding oils getting contaminated with minute chips and particles during grinding and polishing.

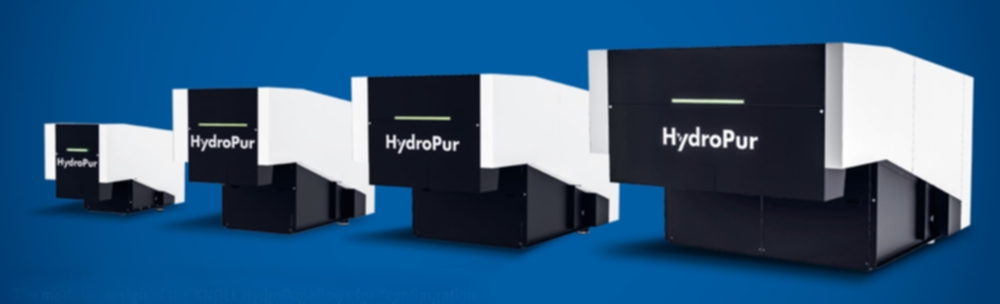

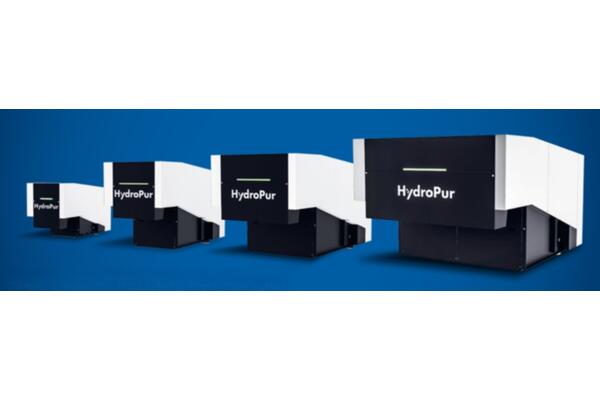

The KNOLL HydroPur is a hydrostatic filter capable of supplying metal-cutting machine tools with purified cooling lubricant (emulsion or oil). Due to its shallow discharge angle and high filter fineness, this filter type is particularly suitable for use in grinding processes. KNOLL offers different variants of the HydroPur, which differ in maximum filtration capacity, potential vacuum assist as well as numerous options. Thanks to the modular design using standard components, a customer-specific filter can be configured without the need for an expensive custom design.

The smallest model, a HydroPur H 250, is a complete system consisting of a hydrostatic filter head, a clean tank, filter fleece, supply pumps, and an optionally available unit for surface skimming.

The HydroPur 400 is a cost-effective, entry-level filter featuring purely hydrostatic filtration. An optional supplementary magnetic roller is also available. The HydroPur H 700 demonstrates simple vacuum-assisted filtration. This is achieved via a side-channel compressor, which generates vacuum in the filter chamber and thus enhances filtration. The HydroPur H 700 also features a winding unit for the used filter fleece.

While the two HydroPur variants described are already successful in the market, the V variant, equipped with a large vacuum turbine and filter pump, will receive sales approval shortly.

Thanks to the powerful vacuum pump, HydroPur V filters achieve significantly improved filtration performance. In the case of the HydroPur V 1500, this is 1,500 l/min. The H variant with the same filter head handles 1,000 l/min. Incidentally, the additional “E” in the product name stands for an additional continuous filter belt, which ensures reduced operating and disposal costs.

When Filter of Super Fineness is Required

Designed for the finest filtration, the MicroPur® superfine filter – also featuring a modular design – is KNOLL’s flagship product. It is ideally suited for use in the grinding of carbide and HSS tools. But it also delivers optimal results in the machining of castings. The MicroPur® achieves a filter fineness of less than 3 µm and manages without filter consumables thanks to its special design, which makes a significant contribution to its high degree of efficiency and sustainability.

KNOLL’s smallest standard model, the MicroPur®120, features two backflushable filter elements for a filtration capacity of approximately 120 l/min. The KNOLL MicroPur® product range also includes standalone units in sizes of 240 and 480, as well as individually-configured, centralized filtration systems for entire production areas.

The Click for Increased Efficiency

The innovative Click.it probe system developed by KNOLL specifically helps to reduce waste and increase efficiency in various production processes. Whether one needs to requisition materials, call the foreman or monitor machines, Click.it ensures that information arrives right where it is needed, without detours. The system, which is available in various expansion levels, is based on a combination of buttons, sensors, software, and interfaces that collect data and transmit it to a central server. The server processes the data and transmits it to various output devices. In parallel with this, it is possible to evaluate the data, which allows for transparent process control.

KNOLL in India

KNOLL Maschinenbau GmBH’s conveyor systems, filtration systems, and pumps for metal processing are available in India through NN Combined Engineering Agencies Pvt Ltd (NNCEA), which provides complete manufacturing solutions—including logistics and supply-chain support—for a wide range of industries.

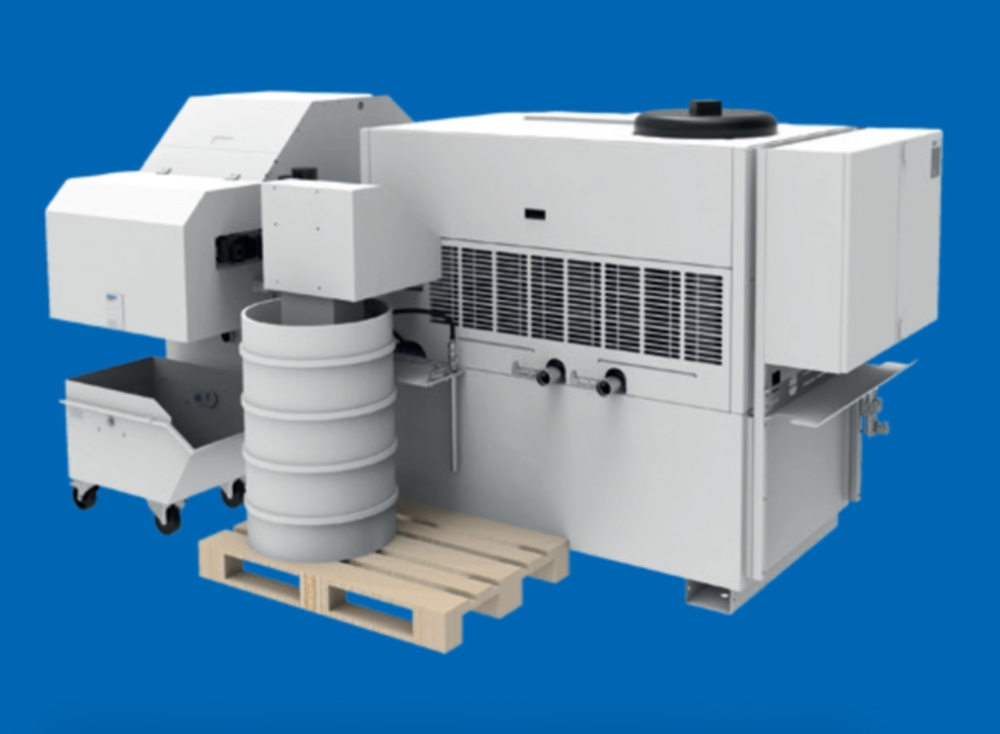

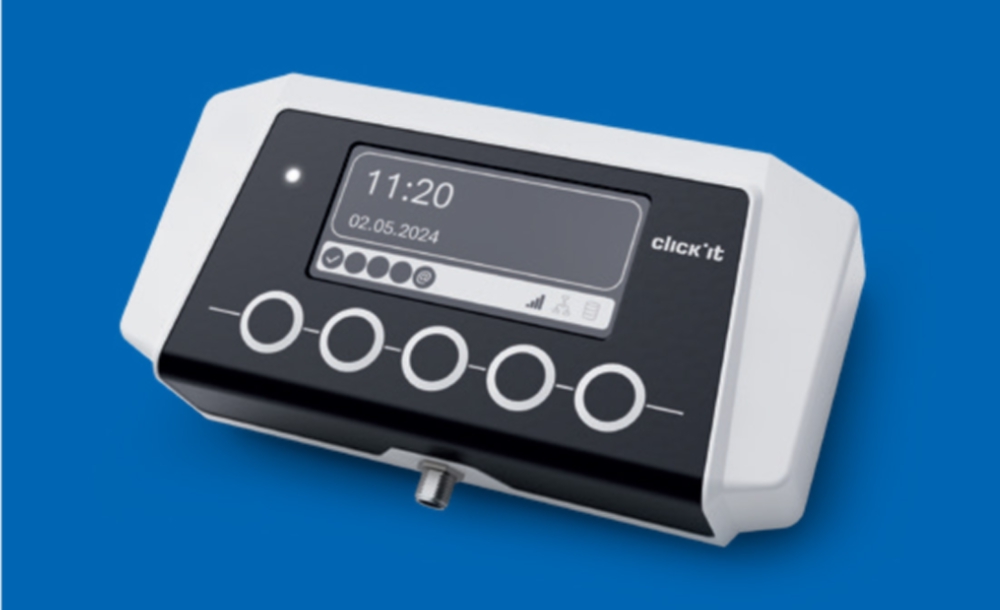

KF 400-E with a MicroPur®240 superfine filter and sludge concentrator.		The Click.it Pro hardware solution, with its five freely programmable buttons, display, and microcontroller, deserves special note.

 Source: KNOLL Maschinenbau GmbH
